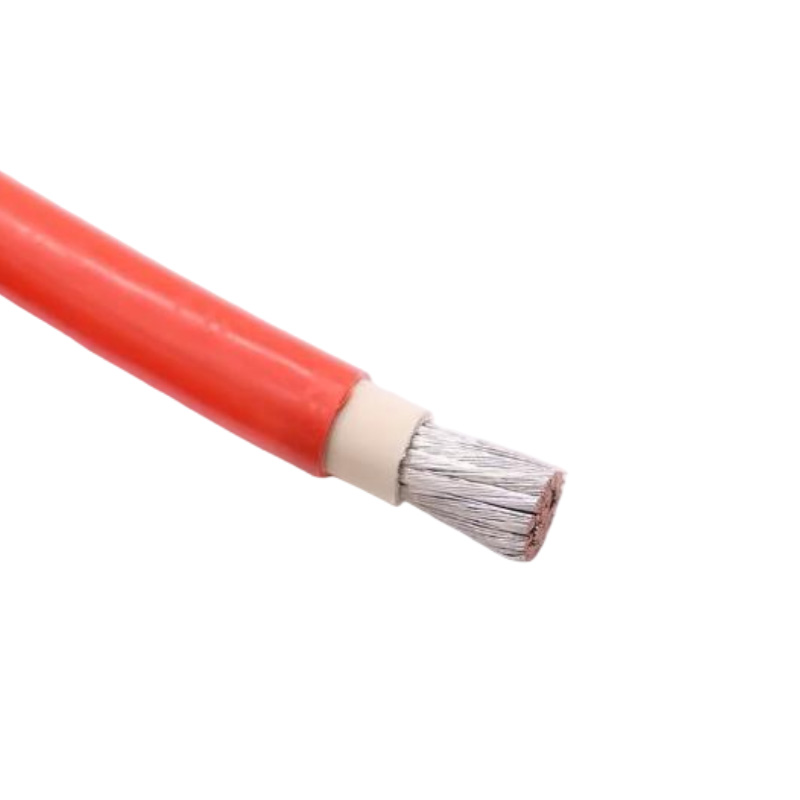

Cross Cection
（mm2）
|
Conductor Construction
（n/mm）
|
Conductor Stranded OD.
（mm）
|
Cable OD.
（mm）
|
Tinned copper)
Conductor Max.Resistance AT 20℃
（Ω/km）
|
Current Carring Capacity AT 60℃（A）
|
|
1.5 |
30/0.25 |
1.58 |
4.90 |
13.7 |
30 |
|
2.5 |
49/0.25 |
2.02 |
5.45 |
8.21 |
41 |
|
4 |
56/0.285 |
2.35 |
6.10 |
5.09 |
55 |
|
6 |
84/0.3 |
3.20 |
7.20 |
3.39 |
70 |
|
10 |
84/0.4 |
4.60 |
9.00 |
1.95 |
98 |
|
16 |
128/0.4 |
5.60 |
10.20 |
1.24 |
132 |
|
25 |
192/0.4 |
6.95 |
12.00 |
0.795 |
176 |
|
35 |
276/0.4 |
8.30 |
13.80 |
0.565 |
218 |
Technical Data
|
Nominal voltage |
DC:1.8KV AC: 0.6/1.0KV |
|
Voltage test on completed cable |
AC: 6.5KV，DC: 15KV，5min |
|
Ambient temperature |
-40℃ up to +90℃ |
|
Max. Temperature at conductor |
+120℃ |
|
Service life |
The expected period of use is 25 years (Ambient temperature:-40℃ up to+90℃) |
|
Refer to short circuit allows the temperature |
The permitted short-circuit-temperatureure is 200℃ referring to a period of 5s |
|
Bending radius |
≥4×φ (D<8mm), ≥6×φ (D≥8mm) |
|
Resistance against acid and alkaline solution |
EN60811-2-1 |
|
Cold bending test |
EN60811-1-4 |
|
Weathering/UV-resistance |
HD605/A1 |
|
O-zone resistance at complete cable |
EN50396 |
|
Test under fire conditions |
EN 60332-1-2 |
Packing For Shipment
Multiple packaging methods, suitable for different transport conditions.
|
Packing picture |
Packing/Meter |
Pack Reel |
Pallet Dimension(m) |
Pallet/Meter |
|
|
100 Meter/Roll |
/ |
1.12×1.12×1.04m |
4mm²-14400m |
|
|
200 Meter/Roll |
/ |
1.12×1.12×1.04m |
4mm²-16000m |
|
|
100 Meter/Reel |
Plastic |
1.12×1.12×1.04m |
4mm²-12500m |
|
|
500 Meter/Reel |
Plywood |
1.12×1.12×1.04m |
4mm²-15000m |
|
|
1000 Meter/Reel |
Plywood |
1.12×1.12×1.04m |
4mm²-15000m |
|
|
3000 Meter/Reel |
Plywood |
1.12×1.12×1.04m |
4mm²-15000m |
