Shielded Cable :
Cable for high voltage circuit of road vehicle
Meet the Standard:LV216-2
Unshielded Cable :
Using temperature -40℃~+125℃；40℃~+150℃；40℃~+160℃；40℃~+300℃
Cable material meets GB/T 14088 HB,V0 combustion grade
Rated voltage 600V AC / 900V DC,suitable for 1500V DC high voltage conditions
The bending radius not less than five times the cable 5×OD, easy to install.
Meet the Standard: LV216-2

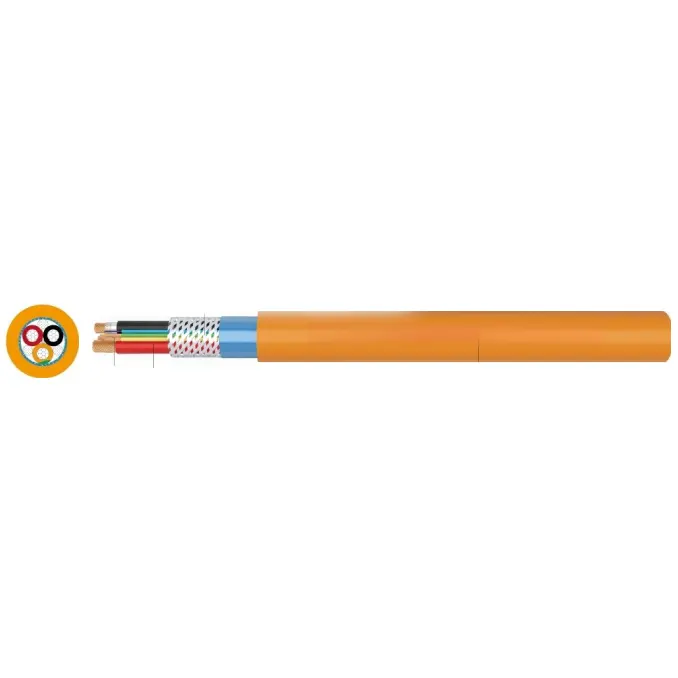

Multi-core Shielded Cable Structure:
1,Using temperature -40℃~+125℃;-40℃~+150℃
2,Rated voltage 600VAC/900V DC, suitable for 1500V DC high voltage conditions
3,Halongen free,follow the environment-friendly product's developing direction
4,Cable material meets GB/T2408 HB,VO combustion grade5,The belding radius not less than five times the cable 5×OD,easy to install
|
Style of the cable (mm²) |
Conductor |
Insulation |
Shielded(≥85%) |
Core Wrap |
Jacket |
||||
|
Conductor Construction n/mm |
Stranded Dia. mm Max. |
Conductor Max Resistance AT20℃(2/Km) |
Insulation Dia. (mm) |
Volume Resistivity AT 20℃ (2mm) |
Max Dia. (mm) |
Core Wrap |
Cable Dia (mm) |
||
|
EVP-YJ/SIR2×1.5(shielded) |
30/0.25AS |
1.58 |
12.7 |
5.8(-0.4) |
1014 |
0.16TD |
Al-mylar |
Cotton paper |
8.5(-0.6) |
|
EVP-YJ/SIR3×1.5(shielded) |
6.2(-0.4) |
0.16TD |
9.1(-0.6) |
||||||
|
EVP-YJ/SIR4×1.5(shielded) |
6.8(-0.4) |
0.16TD |
9.7(-0.6) |
||||||
|
EVP-YJ/SIR2×2.5(shielded) |
49/0.25AS |
2.02 |
7.6 |
6.9(-0.4) |
0.16TD |
9.9(-0.6) |
|||
|
EVP-YJ/SIR3×2.5(shielded) |
7.4(-0.4) |
0.16TD |
10.4(-0.6) |
||||||
|
EVP-YJ/SIR4×2.5(shielded) |
8.1(-0.4) |
0.16TD |
11.1(-0.6) |
||||||
|
EVP-YJ/SIR2×4(shielded) |
56/0.30AS |
2.60 |
4.71 |
8.3(-0.4) |
0.16TD |
11.3(-0.5) |
|||
|
EVP-YJ/SIR3×4(shielded) |
8.9(-0.4) |
0.16TD |
12.1(-0.5) |
||||||
|
EVP-YJ/SIR4×4(shielded) |
9.8(-0.4) |
0.21TD |
13.3(-0.5) |
||||||
|
EVP-YJ/SIR2×6(shielded) |
84/0.30AS |
3.20 |
3.14 |
9.7(-0.4) |
0.16TD |
12.8(-0.5) |
|||
|
EVP-YJ/SIR3×6(shielded) |
10.5(-0.5) |
0.21TD |
14.1(-0.5) |
||||||
|
EVP-YJ/SIR4×6(shielded) |
11.4(-0.5) |
0.21TD |
15.1-0.5) |
||||||
Cable Structure:
Shield: Tinned annealed soft copper wire woven
Conductor: Annealed soft bare copper
Insulation: 125℃/150℃thermosetting elastomers
Sheath: 125℃/150℃ thermosetting elastomers
Features:
Using temperature -40°C~+125°C：-40°C~+150°℃：
Cable material meets GB/T2408 HB,V0 combustion grade
Rated voltag1000VAC/1500VDC
Ratedvoltage1000VAC/1500VDC
The belding radius not less than five times the cable 5×OD,easy to install
Halongenfree.follow the environment-friendly product's developing direction
|
Style of the cable |
Conductor |
Insulation |
Shielded(≥85%) |
Jacket |
||||||
|
Conductor |
Stranded |
Conductor Max |
Nominal |
Insulation |
Volume Resistivity |
Max |
Core |
Nominal |
Cable |
|
|
QZJP2-C/D/E/F1×10(shielded) |
323/0.2OAS |
4.4 |
1.82 |
1 |
6.50±0.20 |
1014 |
0.16TD |
Al-mylar |
1.3 |
9.90±0.25 |
|
QZJP2-C/D/E/F1×16(shielded) |
513/0.2OAS |
5.7 |
1.16 |
1.1 |
7.90±0.25 |
|
0.16TD |
|
1.3 |
11.40±0.40 |
|
QZJP2-C/D/E/F1×25(shielded) |
798/0.2OAS |
6.7 |
0.743 |
1.3 |
9.60±0.25 |
|
0.21TD |
|
1.5 |
13.70±0.40 |
|
QZJP2-C/D/E/F1×35(shielded) |
1102/0.2OAS |
8 |
0.527 |
1.3 |
10.60±0.40 |
|
0.21TD |
|
1.5 |
14.80±0.40 |
|
QZJP2-C/D/E/F1×50(shielded) |
1596/0.2OAS |
9.5 |
0.368 |
1.5 |
12.50±0.40 |
|
0.21TD |
|
1.7 |
17.10±0.50 |
|
QZJP2-C/D/E/F1×70(shielded) |
2223/0.2OAS |
11.5 |
0.259 |
1.5 |
14.50±0.40 |
|
0.21TD |
|
1.7 |
19.10±0.50 |
|
QZJP2-C/D/E/F1×95(shielded) |
3034/0.2OAS |
13.5 |
0.196 |
1.5 |
16.70±0.50 |
|
0.21TD |
|
1.7 |
21.30±0.60 |
|
QZJP2-C/D/E/F1×120(shielded) |
3820/0.2OAS |
15.7 |
0.153 |
1.5 |
19.00±0.50 |
|
0.21TD |
|
1.7 |
23.60±0.60 |
|
The product’s detailed description please refer to the specification for approval. |
||||||||||
Unshielded Cable
Cable Structure:
Features:
Using temperature -40℃~+125℃；40℃~+150℃；40℃~+160℃；40℃~+300℃
Cable material meets GB/T 14088 HB,V0 combustion grade
Rated voltage 600V AC / 900V DC,suitable for 1500V DC high voltage conditions
The bending radius not less than five times the cable 5×OD,easy to install
Halon free,follow the environment friendly product's developing direction
|
Style of the cable [mm²] |
Conductor |
Insulation |
||||
|
Conductor |
Stranded |
Conductor Max. |
Min |
Insulation |
Volume resistivity |
|
|
EV-YJ/SR 1×2.5(Shielded) |
136/0.15AAS |
2.2 |
7.6 |
0.56 |
3.45±0.15 |
≥109 |
|
EV-YJ/SR 1×4(Shielded) |
120/0.20A5 |
2.8 |
4.7 |
0.64 |
4.20±0.20 |
|
|
EV-YJ/SR 1×6(Shielded) |
183/0.20A5 |
3.4 |
3.1 |
0.64 |
4.80±0.20 |
|
|
EV-YJ/SR 1×10(Shielded) |
320/0.20A5 |
4.5 |
1.82 |
0.8 |
6.20±0.30 |
|
|
EV-YJ/SR 1×16(Shielded) |
512/0.20A5 |
5.8 |
1.16 |
0.8 |
8.00±0.30 |
|
|
EV-YJ/SR 1×25(Shielded) |
790/0.20A5 |
7.2 |
0.743 |
1.04 |
9.70±0.30 |
|
|
EV-YJ/SR 1×35(Shielded) |
1070/0.20A5 |
8.5 |
0.527 |
1.04 |
10.65±0.35 |
|
|
EV-YJ/SR 1×50(Shielded) |
1600/0.20A5 |
10.5 |
0.368 |
1.2 |
12.80±0.40 |
|
|
EV-YJ/SR 1×70(Shielded) |
2175/0.20A5 |
12.5 |
0.259 |
1.2 |
14.70±0.40 |
|
