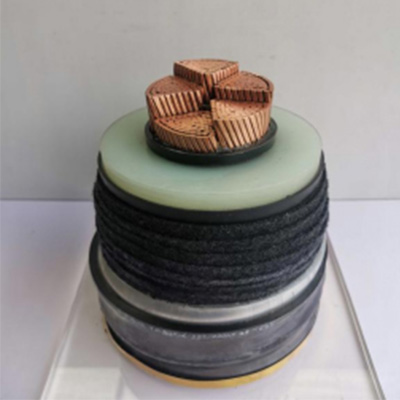

    • High Voltage Power Cables

    Product series model:
    Model: YJLW02 YJLW02-Z、YJLW03、YJLW03-Z
    Specification: 240-1600mm2
    Rated voltage: 64/110kV
    Flame retardant characteristics: ZA, ZB, ZC

    Product Description
    Product code
    YJ: cross-linked polyethylene (XLPE) insulation T: copper conductor, omitted L: aluminum conductor LW: wrinkled aluminum sleeve 02: polyvinyl chloride (PVC) outer sheath 03: polyethylene outer sheath Z: longitudinal water resistance
    Product representation method

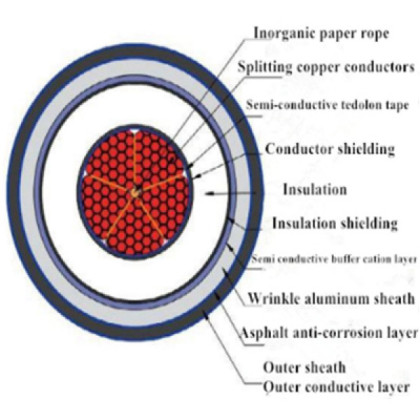

    The models are composed of insulation, conductor, metal sleeve, non-metallic outer sheath or universal outer sheath, and water blocking structure in sequence.

    Usage:
    This series of products is suitable for energy distribution in power frequency rated voltage 64/110kV transmission and distribution systems.
    Usage characteristics:
    1) The rated power frequency voltage U0/U (Um) is 64/110 (126) kV
    2) The maximum allowable long-term working temperature for cable conductors is 90 ℃;
    3) The maximum temperature of the cable conductor during a short circuit (maximum duration not exceeding 5 seconds) shall not exceed 250 ℃;
    4) The ambient temperature during laying shall not be lower than 0 ℃;
    5) The minimum bending radius of the cable should not be less than 25 times the outer diameter of the cable.
